8 Cores Outdoor Fiber Optic Distribution Box for PC ABS SMC Material in FTTH Networks

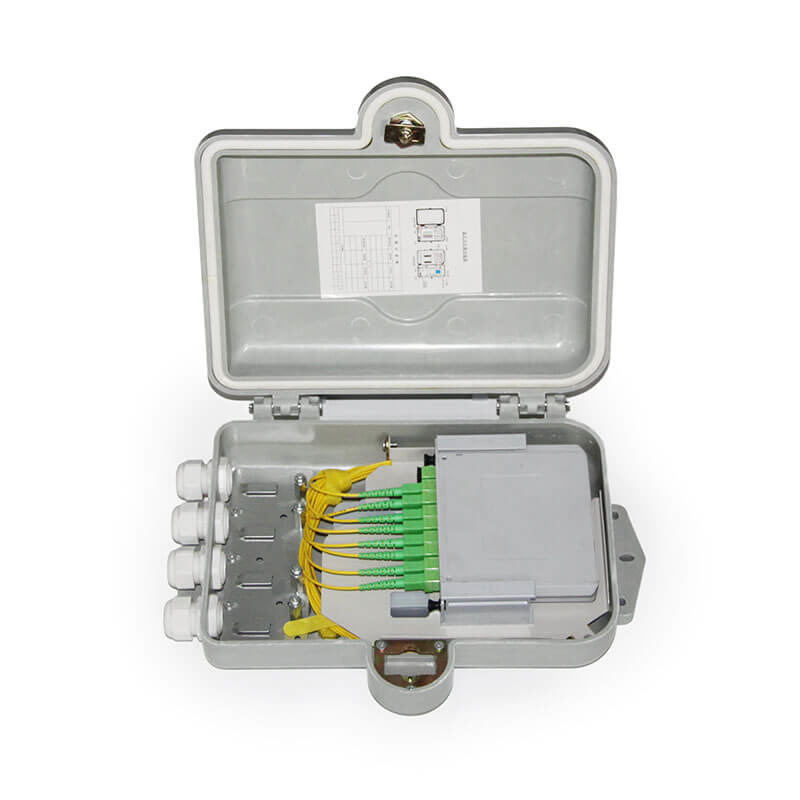

Large Image : 8 Cores Outdoor Fiber Optic Distribution Box for PC ABS SMC Material in FTTH Networks

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-1208

Payment & Shipping Terms:

Minimum Order Quantity:	500 pieces
Price:	$5.00 - $10.00/pieces
Packaging Details:	Export Carton Packing
Supply Ability:	30000 Piece/Pieces per Week

Contact Now

8 Cores Outdoor Fiber Optic Distribution Box for PC ABS SMC Material in FTTH Networks

Description

Type:	Fiber Optic Distribution Box, Optical Fibers	Use:	Outdoor
Material:	PC, ABS, SMC, PC+ABS Or SPCC	Capacity:	8 Cores
Adapter:	12x SC	Temperature:	-40°C - 60°C
Port:	Ningbo

Description :
This Fiber Optic Distribution Box terminates is used for connecting optical cable with various equipments in FTTX optical access network node, could be up to 1 input fiber optic cables and 8 FTTH drop output cable port, offers spaces for 8 fusions, allocates 8 SC adapters and working under both indoor and outdoor environments, it is applied to the second stage splitter point of optical fiber network (PLC could be loaded inside), the material of this box is usually made of PC, ABS, SMC, PC+ABS or SPCC, Optical cable can be connected by fusion or mechanical jointing method after introduction into the box,It is a perfect cost-effective solution-provider in the FTTx networks.

Features :
1. Fiber Optic Distribution Box is composed by body, splicing tray, splitting module and accessories.
2. ABS with PC material used ensures the body strong and light.
3. Max allowance for exit cables: up to 1 input fiber optic cables and 8 FTTH drop output cable port, Max allowance for entry cables: max diameter 17mm.
4. Water-proof design of DOWELL for outdoor uses.
5. Installation method: Outdoor wall-mounted, pole-mounted (installation kits provided.)
6. Adapter slots used – No screws and tools needed for installing adapters.
7. Space saving: double-layer design for easier installation and maintenance; Upper layer for splitters and distribution or for 8 SC adapters and distribution ; Lower layer for splicing.
8. Cable fixing units provided for fixing the outdoor optical cable.
9. Protection Level: IP65.
10. Accommodates both cable glands as well as tie-wraps.
11. Lock provided for extra security.
12. Max allowance for exit cables: up to 8 SC or FC or LC Duplex simplex cables.

Operation Conditions:
Temperature : -40°C - 60°C.
Humidity : 93% at 40°C.
Air Pressure : 62kPa – 101kPa.
Relative humidity ≤95%(+40°C).

1. Q : Are you trading company or manufacturer?
A : 70% of our products we manufactured and 30% do trading for customer service
2. Q : How can you ensure the quality?
A : Good question! We are a one-stop manufacturer. We have complete facilities and over-15- years manufacturing experience to ensure product quality. And we have already passed ISO 9001 Quality Management System.
3. Q : Can you provide samples ? Is it free or extra?
A : Yes, After price confirmation , we could offer the free sample, but the shipping cost need pay for by your side.
4. Q : How long is your delivery time ?
A : In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.
5. Q: Can you do OEM?
A: Yes , we can
6. Q: What is your payment term ?
A: Payment <=4000USD，100% in advance. Payment>= 4000USD, 30% TT in advance, balance before shipment.
7. Q: How we can pay?
A: TT, Western Union , Paypal ,Credit Card and LC
8. Q: Transportation?
A: Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train
