Galvanized Iron Fastening Hook Supporting Optical Cable

Basic Information

Place of Origin:	China,Zhejiang
Brand Name:	DOWELL
Model Number:	YK-P-02

Minimum Order Quantity:	1000 pieces
Packaging Details:	Normal Package
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000 PCS Per 7 Days

Get Best Price Contact Now

Detail Information

Material:	Galvanized Iron	Weight:	510 G
Max. Working Load (Along The FOCL Axis):	2 KN	Max. Working Load (Vertical):	2 KN

Product Description

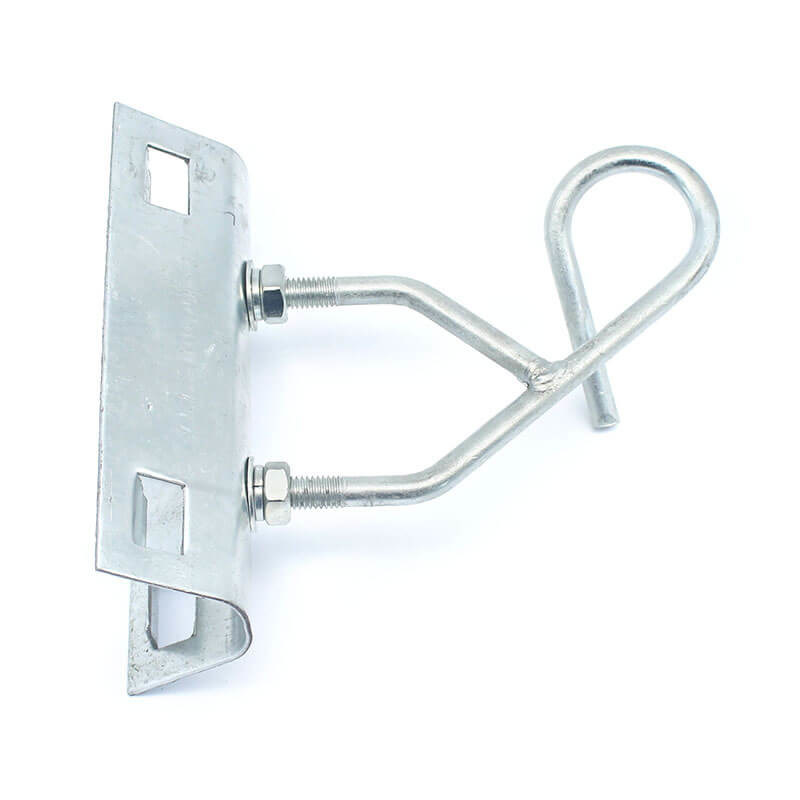

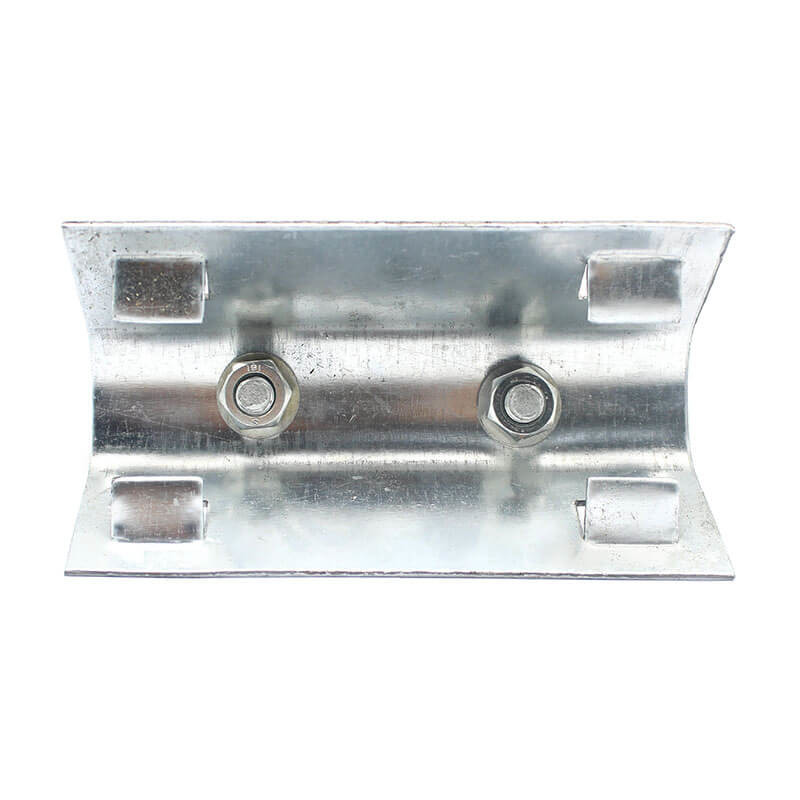

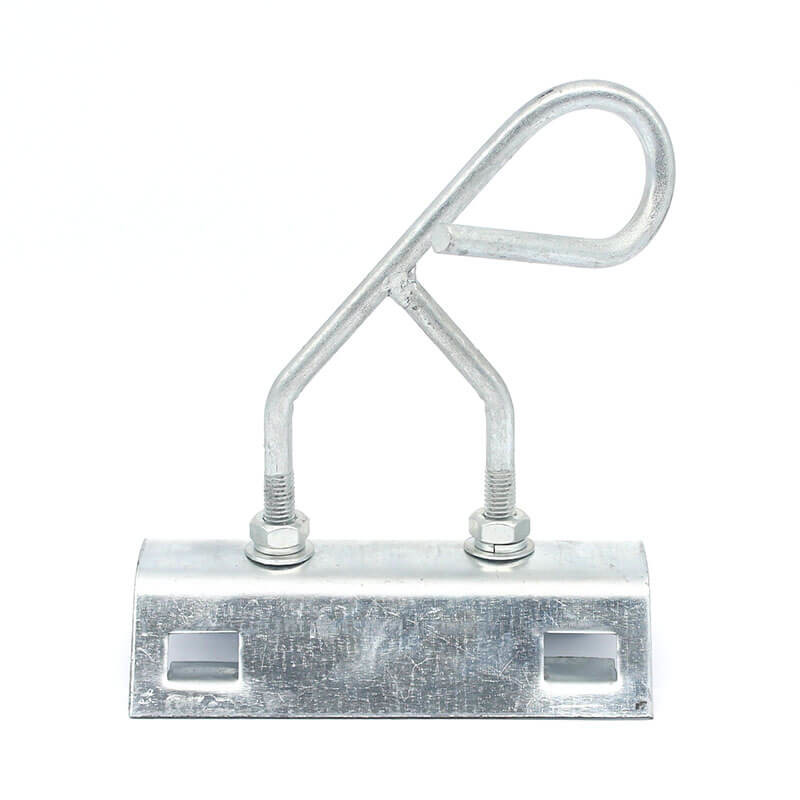

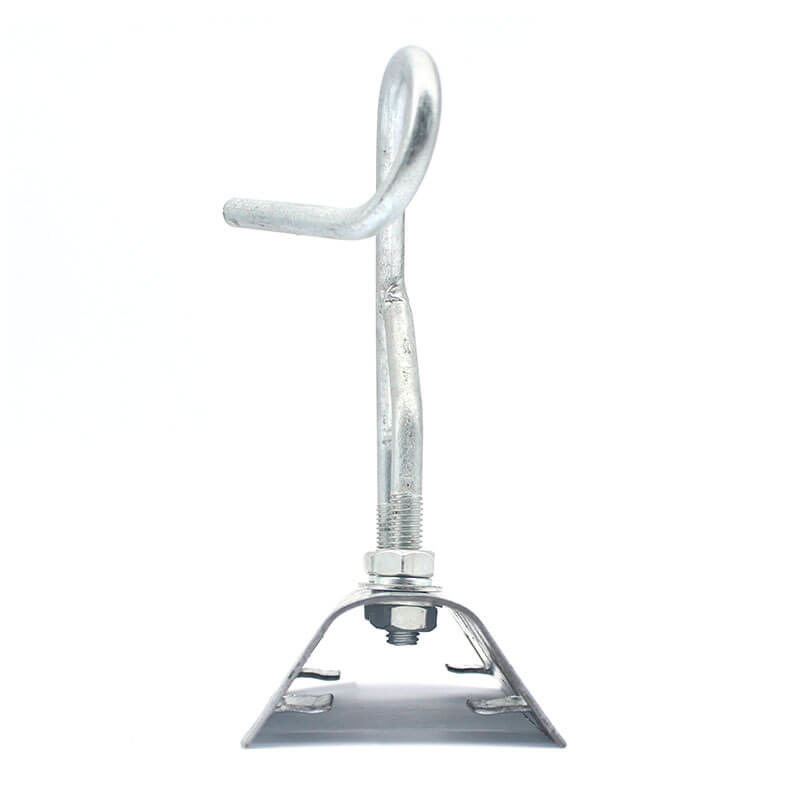

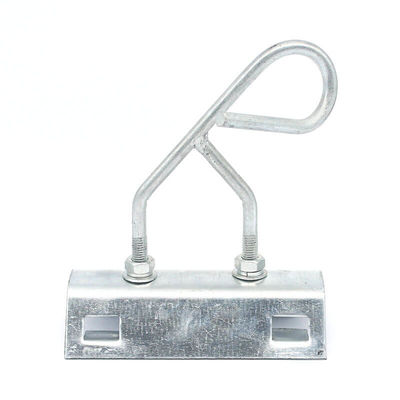

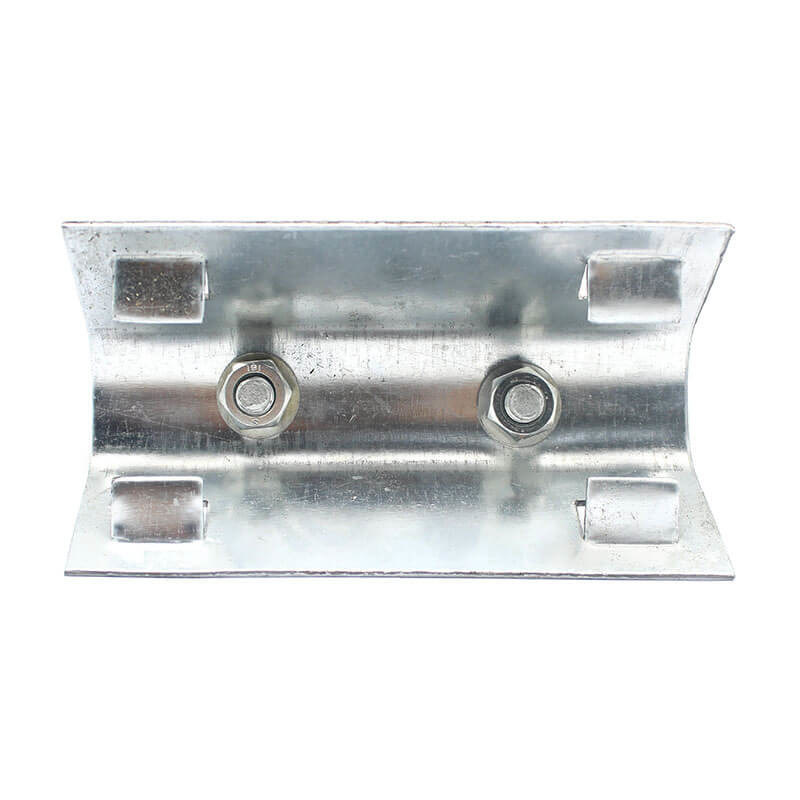

Galvanized Iron Fastening Hook Supporting Optical Cable

YK-P-02 is designed for supporting mounting of an optical cable on intermediate supports of overhead lines with voltage up to 20kV, urban electrical facilities (street lighting, land electrical transport). YK-P-02 is an excellent solution for mounting the cable on the wall elements, building facades, on structures with a long cable run up to 110 m.

Specification:

Material	Galvanized Iron
Weight	510 g
Max. Working Load (Along the FOCL axis)	2 kN
Max. Working Load (Vertical)	2 kN

Application:

1. Allows for fastening to 4 anchorages isolated neutral carrier supporting insulated wires to 1000V and up to 2 supporting clips to supports.

2. Able to withstand many years a variety of climatic conditions, including temperature extremes, rain, sunshine, strong winds.

3. Suitable for installation on all types of supports, beams and tubal holders.

4. Allows you to quickly and cost-effectively perform the installation of the cable.

5. It is made with a protective coating of zinc in protection UHL-1 according TU 3449-041- 2756023 0-98, which ensures long-term trouble-free operation.

Our Package:

Production Flow:

Tag:
