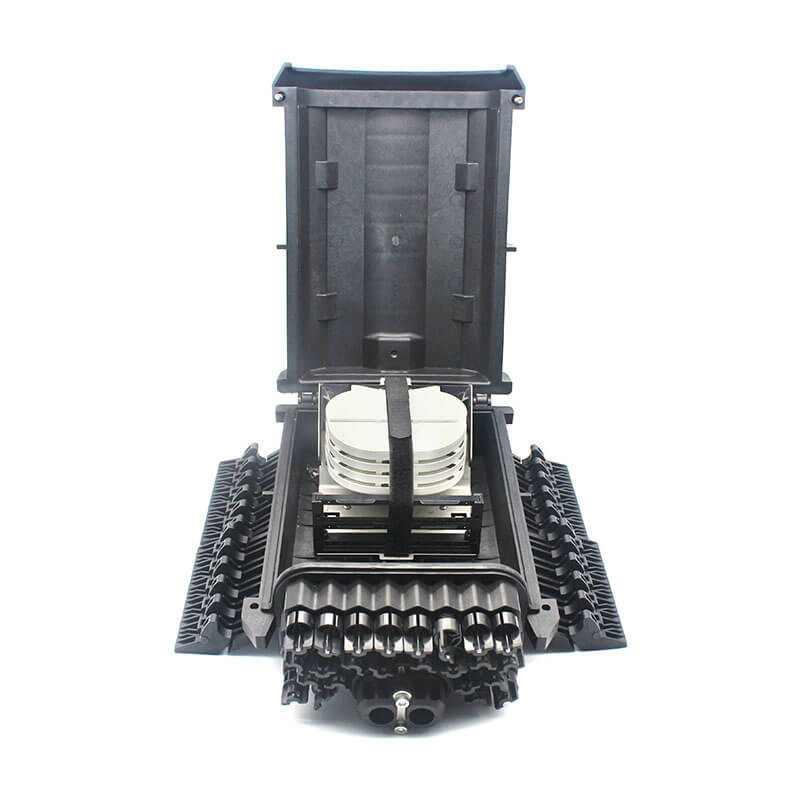

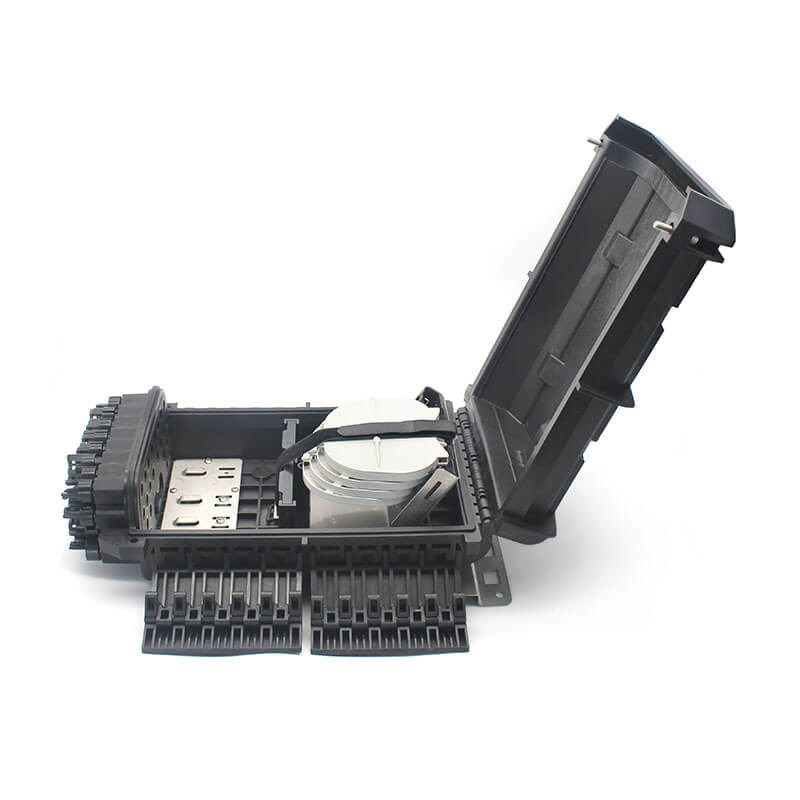

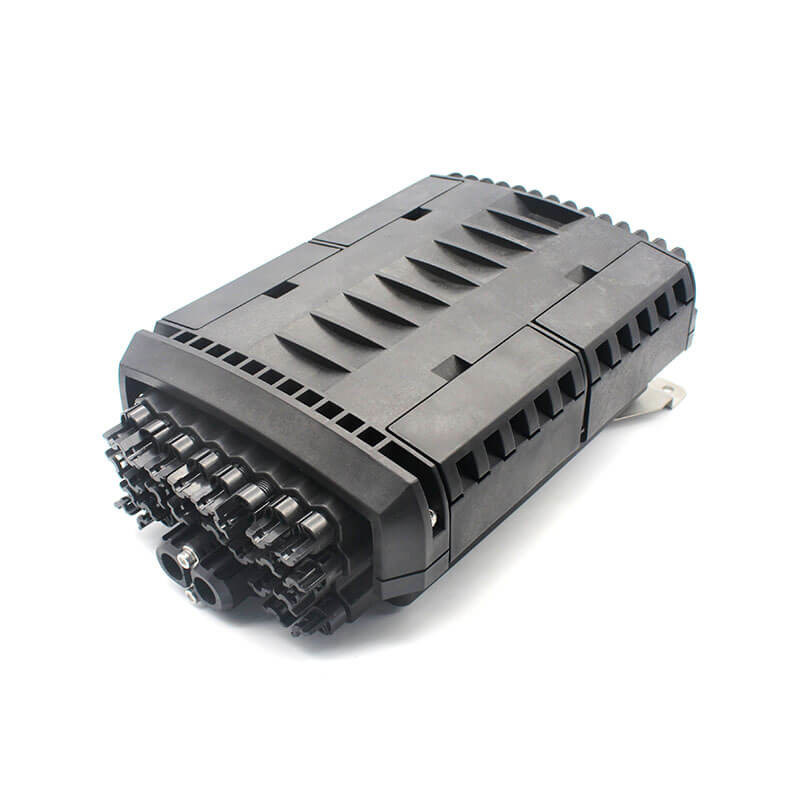

16 24 Ports Mechanical Fiber Distribution Box Supports High-Density Fiber Networks

16 24 Ports Mechanical Fiber Distribution Box Supports High-Density Fiber Networks
16 24 Ports Mechanical Fiber Distribution Box Supports High-Density Fiber Networks
16 24 Ports Mechanical Fiber Distribution Box Supports High-Density Fiber Networks 16 24 Ports Mechanical Fiber Distribution Box Supports High-Density Fiber Networks 16 24 Ports Mechanical Fiber Distribution Box Supports High-Density Fiber Networks 16 24 Ports Mechanical Fiber Distribution Box Supports High-Density Fiber Networks

Large Image :  16 24 Ports Mechanical Fiber Distribution Box Supports High-Density Fiber Networks

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-1219
Payment & Shipping Terms:
Minimum Order Quantity: 500pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500 PCS Per 7 Days
Contact Now

16 24 Ports Mechanical Fiber Distribution Box Supports High-Density Fiber Networks

Description
Material: PP+Glass Fibe Max. Capacity: 48
Color: Black, White, Grey, OEM Sealing Type: Mechanical
Dimension: 380×245×130mm Weight: 3-3.5kg
Highlight:

oem fiber optic terminal box

,

grey fiber optic terminal box

,

oem fiber optic distribution box

16 24 Ports Mechanical Fiber Distribution Box Supports High-Density Fiber Networks

It is designed to seal without screws. The compact size and flip-over cover bring easy operation as well as complete function. The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. It is designed to prevent from operation damage.

Specification:

Dimension(mm) 380×245×130 Max. capacity(Single fiber) 48
Weight(kg) 3～3.5 Sealing type Mechanical
Cable ports 1 input cable port for un-cut cable from diameter from10~17.5mm.
24 output cable port for cable diameter 4mm.		 Single splice tray capacity (Single fiber) 12
Splice tray quantity 1～4

Advantages:

① Efficient Cable Management: Keeps fiber cables organized and protected.

② Scalability: Modular design allows for future expansion.

③ Reliability: Ensures stable and secure fiber connections.

④ Versatility: Suitable for various network architectures and environments.

⑤ Cost-Effective: Reduces installation and maintenance costs.

Application:

1.Widely used in FTTH access

2.Network
3.Telecommunication Network
4.CATV Networks
5.Data communication Networks
6.LANs

16 24 Ports Mechanical Fiber Distribution Box Supports High-Density Fiber Networks 0

Wall mounting

16 24 Ports Mechanical Fiber Distribution Box Supports High-Density Fiber Networks 1

Pole Mounting

More Related Products:

16 24 Ports Mechanical Fiber Distribution Box Supports High-Density Fiber Networks 2

Tag:

fiber optic terminal box,

fiber distribution unit,

ftth junction box
