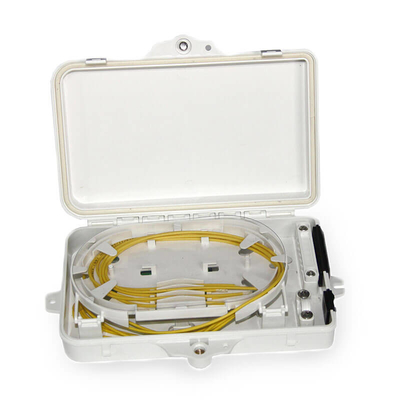

IP55 Water-proof Fiber Optic Distribution Box for Outdoor FTTx Network with Clamping and Fixation Features

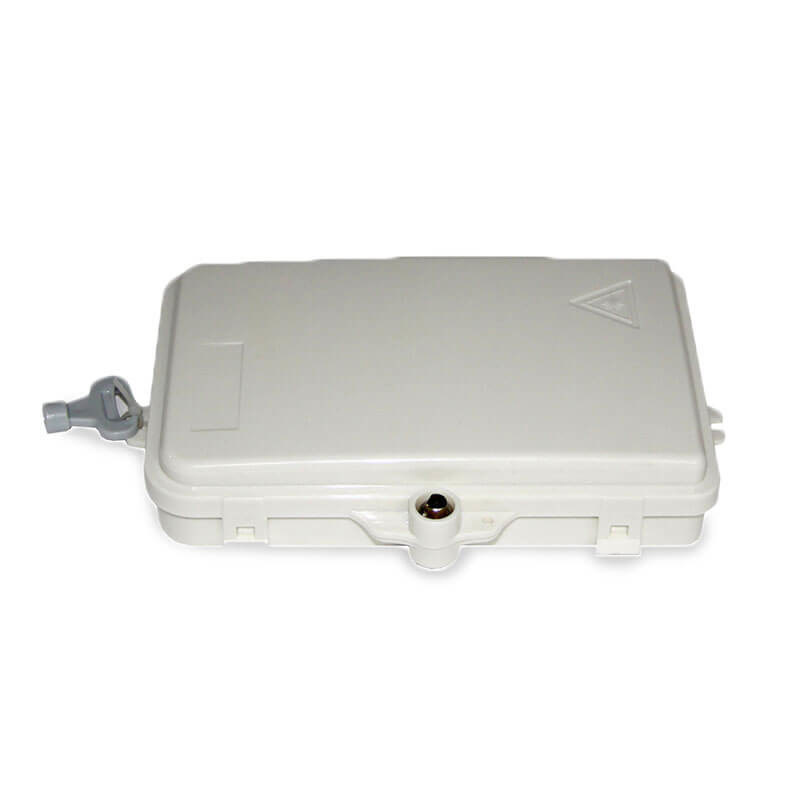

Large Image : IP55 Water-proof Fiber Optic Distribution Box for Outdoor FTTx Network with Clamping and Fixation Features

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-1204

Payment & Shipping Terms:

Minimum Order Quantity:	500 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	500 PCS Per 7 Days

Contact Now

IP55 Water-proof Fiber Optic Distribution Box for Outdoor FTTx Network with Clamping and Fixation Features

Description

Color:

White

Material:

PC+ABS

Dimensions:

167mm*102mm*31mm

Weight:

0.32 KG

Highlight:

outdoor fiber optic terminal box

outdoor fiber optic distribution box

ip55 fiber optic terminal box

Outdoor 4F Fiber Optics Distribution Box IP55 Water-proof

Optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. Thefiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Specification:

Adapter Capacity	SC 2; LC 4; PLC 4	Number of Cable Entrance/Exit	1/4
Optional Accessories	Adapters, Pigtails	Insertion loss	≤0.2dB
UPC return loss	≥50dB	APC return loss	≥60dB
Weight	0.32 KG	Dimensions	167mm102mm31mm

Features:

1.1 Total enclosed structure.

1.2 Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

1.3 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

1.4 Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy

maintenance.

1.5 Distribution panel can be flipped up, feeder cable can be placed in a cup joint way, easy for maintenance and installation.

1.6 Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Application:

2.1 Widely used in FTTH access Network
2.2 Telecommunication Network
2.3 CATV Networks
2.4 Data communication Networks
2.5 LANs

IP55 Water-proof Fiber Optic Distribution Box for Outdoor FTTx Network with Clamping and Fixation Features 0
