16 Cores ABS Ftth Fiber Termination Box With 2x1:8 Tube Splitter Waterproof

Basic Information

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-1224

Minimum Order Quantity:	500 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	500 PCS Per 7 Days

Get Best Price Contact Now

Detail Information

Material:	PC + ABS	Capacity:	16 Cores
Dimension:	172288103	Protection Level:	IP55
Splitter:	2x1:8 Tube Splitter
Highlight:	16 Cores Ftth Fiber Termination Box , 16 Cores ftth distribution box , Waterproof Ftth Fiber Termination Box

Product Description

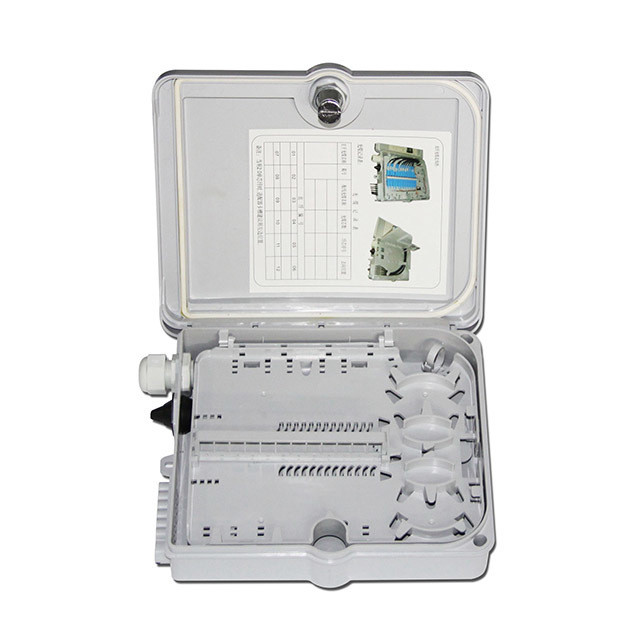

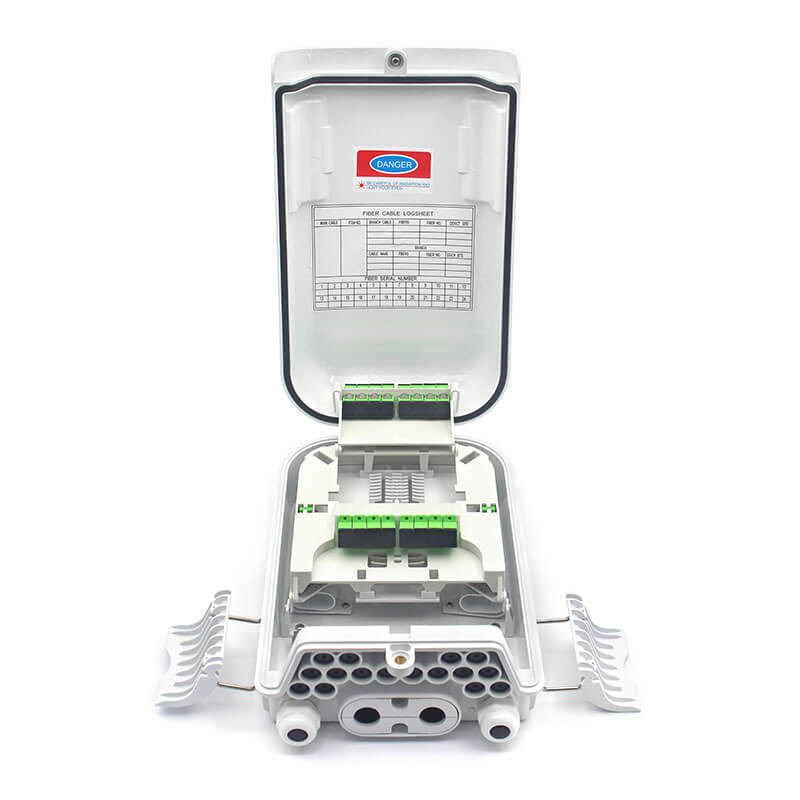

16 Cores Fiber Optical Terminal Box With 2x1:8 Tube Splitter

It can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 16 users requirements. It can help splicing, splitting, storage and management with suitable space.

Specification:

Capacity	16 cores
Material	PC + ABS
Dimensions (HWD)	172mm x 288mm x 103mm
Protection Level	IP55
Flame Retardant Performance	Non-flame retardant
Splitter	Can be with 2x1:8 tube splitter

Features:

1.1 The body is made of high quality engineering plastic with good strength;

1.2 With safe special-shaped lock, the box can be opened easily and has good water-proof performance, suitable for indoor and outdoor natural environments;

1.3 With the independent rubber sealing plug for drop cable, better waterproof performance;

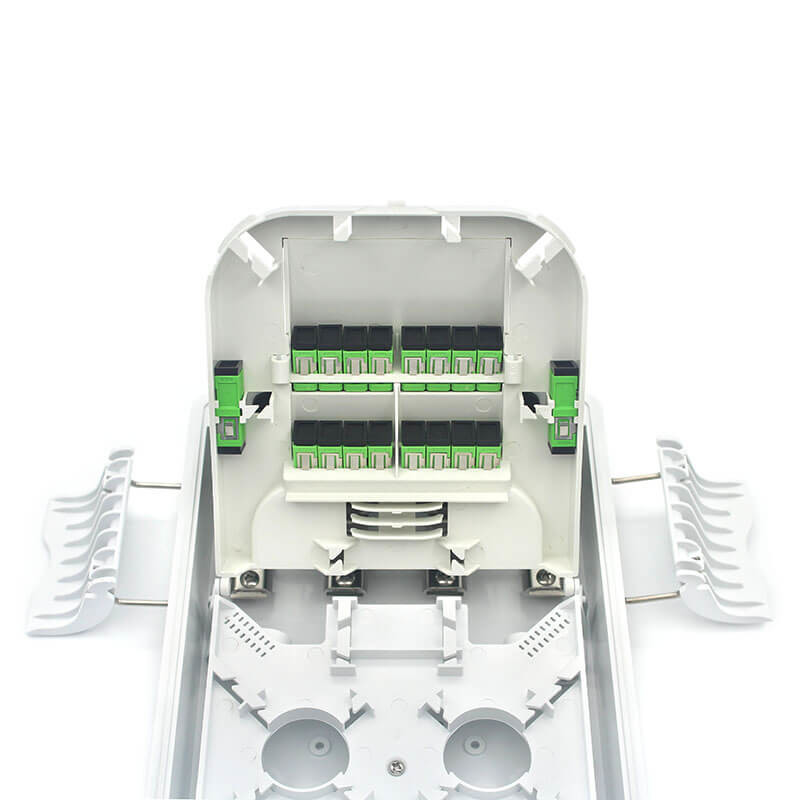

1.4 With double-page design, the box can be installed and maintained easily, the fusion and termination are completely separated;

1.5 The drop leaf can be installed 2 pcs of 1*8 tube splitter;

Application:

2.1 Widely used in FTTH access 2.Network
2.2 Telecommunication Network
2.3 CATV Networks
2.4 Data communication Networks
2.5 LANs

16 Cores ABS Ftth Fiber Termination Box With 2x1:8 Tube Splitter Waterproof 0

Package Information:

3.1 Plastic bag size: 500*410mm

3.2 Inner box with single corrugated size:300*200*115mm

3.3 Carton with double corrugated size:590*315*415mm(10PCS/Box)

3.4 Weight per carton:10 KG

Dimension:

Tag:
