20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs

20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs
20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs 20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs 20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs 20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs 20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs

Large Image :  20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-7004 2 001-01
Payment & Shipping Terms:
Minimum Order Quantity: 20000 pieces
Price: $0.40 - $0.50/pieces
Packaging Details: Normal Package
Supply Ability: 30000 Piece/Pieces per Week
Contact Now

20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs

Description
Type: KRONE LSA Disconnection Module With Screw Terminal Product Name: KRONE LSA Disconnection Module With Screw Terminal
Number Of Pins: 20 Content: 1 Pc(s)
Colour: Cream-white Series: LSA-PLUS
Connection: LSA And Screw Terminals Warranty: 1 Year
Port: Ningbo
Highlight:

pc adsl vdsl tester

,

pc network cable crimping tools

20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs 0
20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs 1
20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs 2
20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs 3
20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs 4

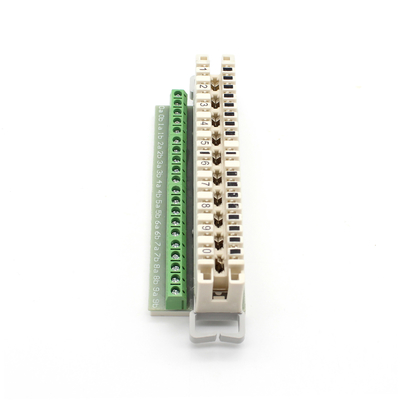

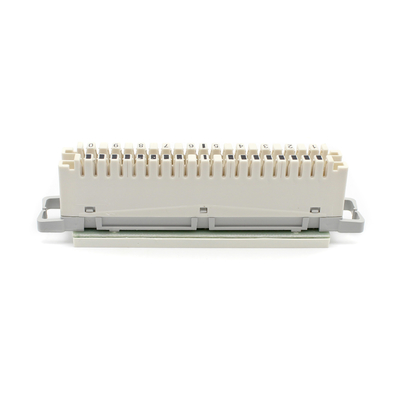

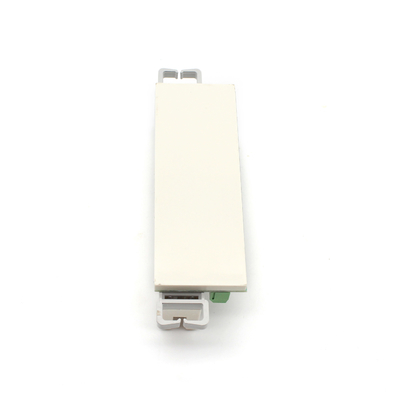

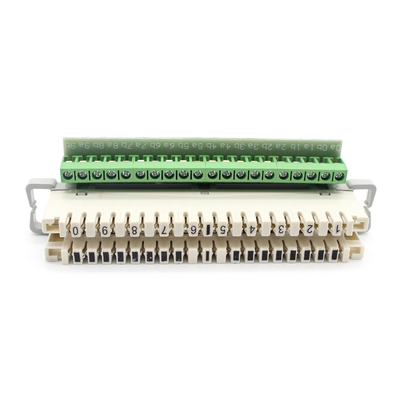

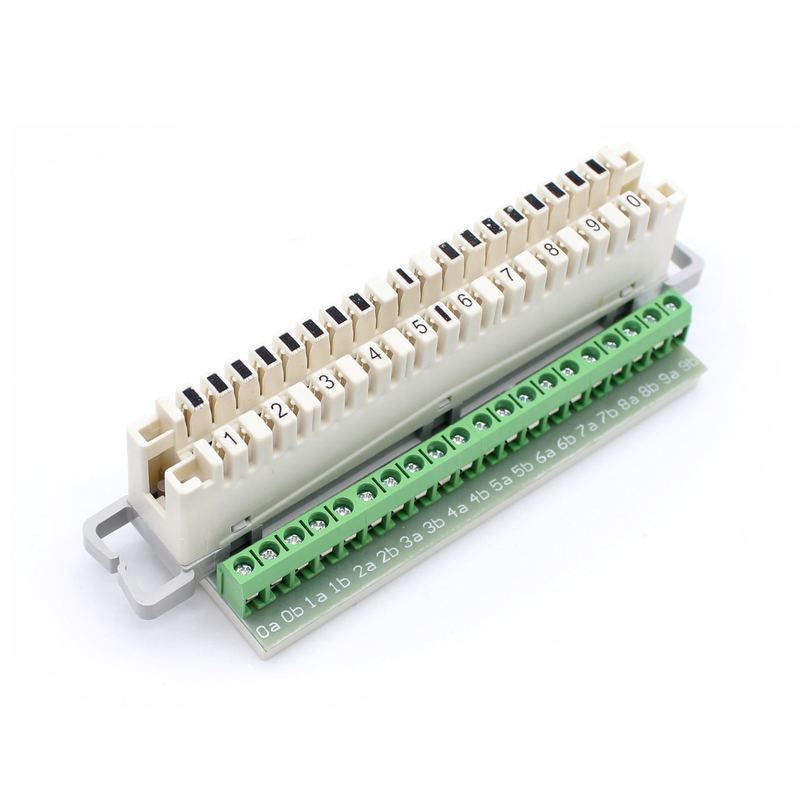

KRONE LSA Disconnection Module 2/10 to Screw terminal has 20 position screw terminals soldered to a PCB. Each IDC contact of the module is connected to the relevant contact of 20 position screw terminal through PCB, thus permitting wires upto 2.5 Sq. mm to be connected to the module.
The assemblies can be supplied as single unit with 20 position terminals on one side or as double units with 20 position terminals connected to both row of IDC contacts
Description
LSA disconnect pin for 10 double wires with additional screw terminals on the jumper for connecting wires up to 2.5 mm² wire diameter. Series 2 for attaching to mounting frames.
Features:
* Can be used as drop wire module in military field installations/rural telecom network
* Occupies 2 or 3 ways of BMF
* Supports all LSA S2 accessories
* Flexible indoor and outdoor use
* Robust long term environmental stability
* Overvoltage/Overcurrent protection


Type
7004 2 001-01
Specification
Screw-in disconnect pin
Compatible with
10 double loaders
Content
1 pc(s)
Cross section
Max 2.5 mm²
Number of pins
20
Colour
Cream-white
Connection
LSA and screw terminals
Manufacturer part No.
7004 2 001-01
Labelling
1 - 0
Conductor cross section
up to 2.5 Sq. mm
Wire stripping
6 mm
Test voltage
Up to 2.5 kV
Cover
Polyamide(Nylon)
20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs 5

20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs 6
20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs 7
20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs 8
20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs 9
20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs 10
20 Pins Screw Terminal Block Krone Lsa Disconnection Module Content 1 pcs 11
1. Q : Are you trading company or manufacturer?
A : 70% of our products we manufactured and 30% do trading for customer service
2. Q : How can you ensure the quality?
A : Good question! We are a one-stop manufacturer. We have complete facilities and over-15- years manufacturing experience to ensure product quality. And we have already passed ISO 9001 Quality Management System.
3. Q : Can you provide samples ? Is it free or extra?
A : Yes, After price confirmation , we could offer the free sample, but the shipping cost need pay for by your side.
4. Q : How long is your delivery time ?
A : In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.
5. Q: Can you do OEM?
A: Yes , we can
6. Q: What is your payment term ?
A: Payment <=4000USD,100% in advance. Payment>= 4000USD, 30% TT in advance, balance before shipment.
7. Q: How we can pay?
A: TT, Western Union , Paypal ,Credit Card and LC
8. Q: Transportation?
A: Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train
