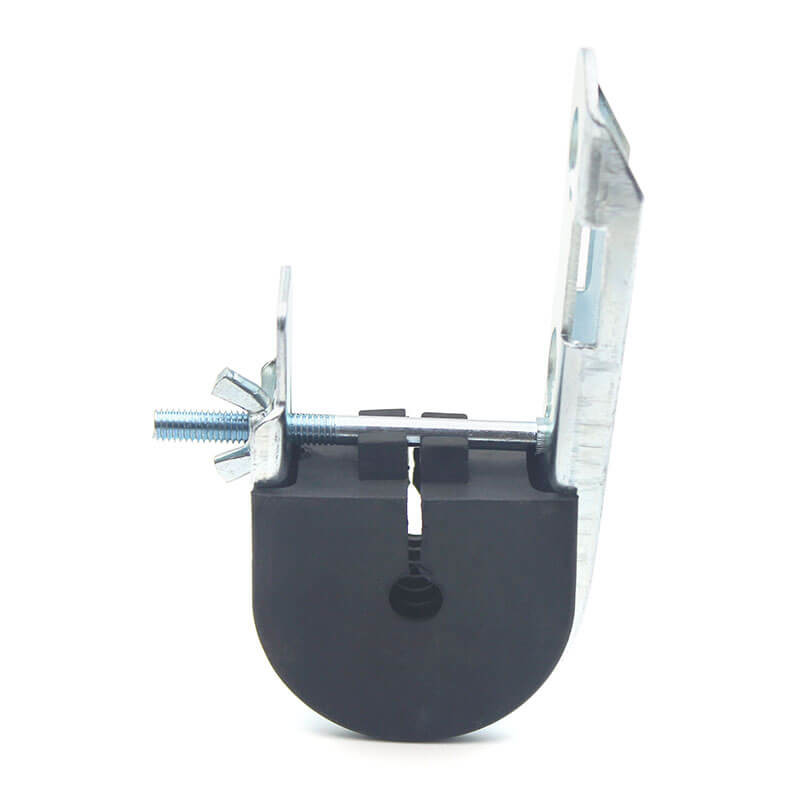

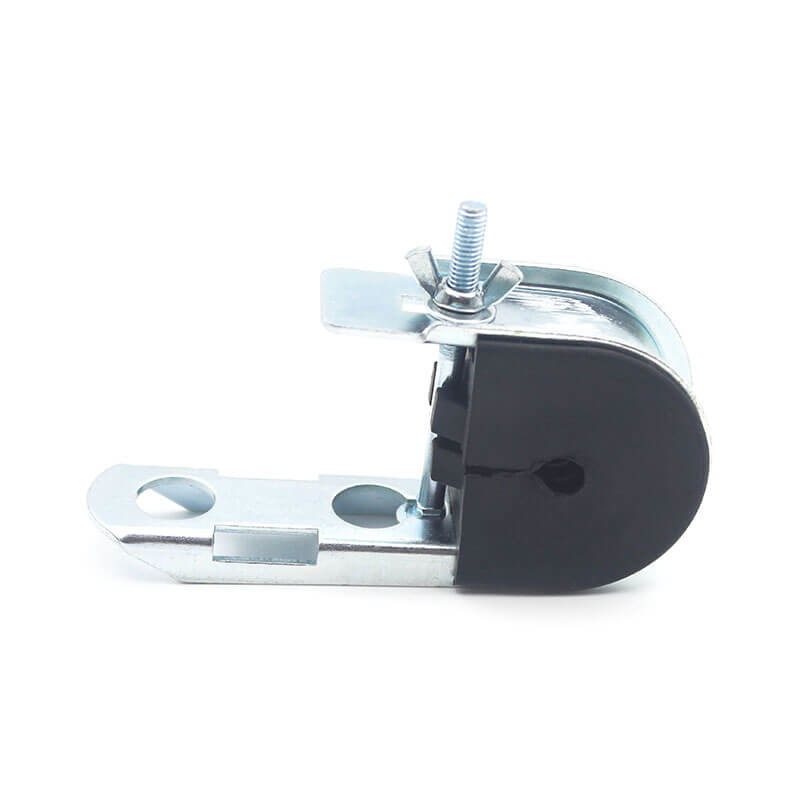

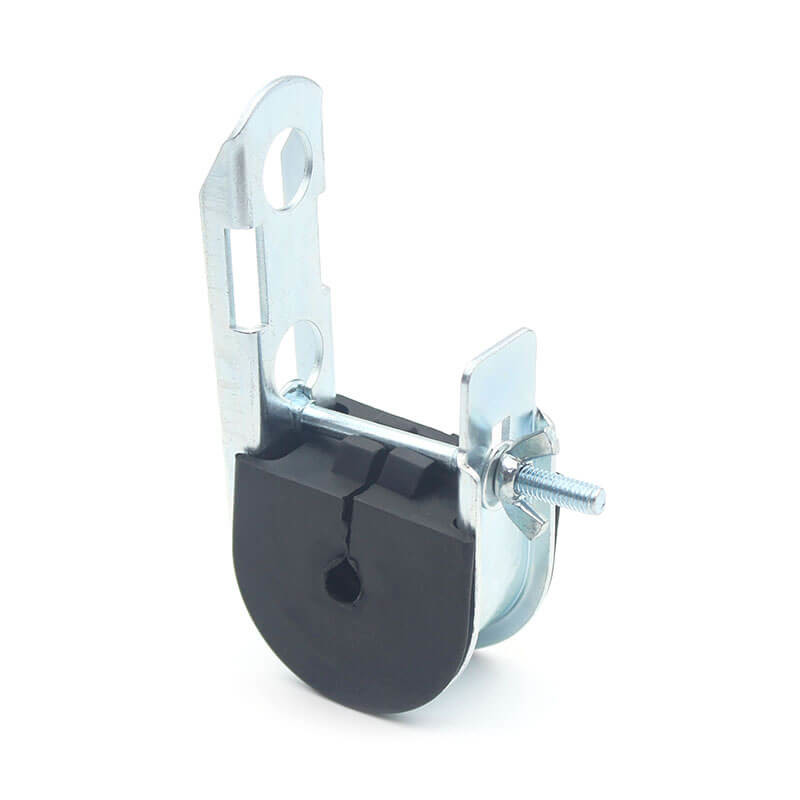

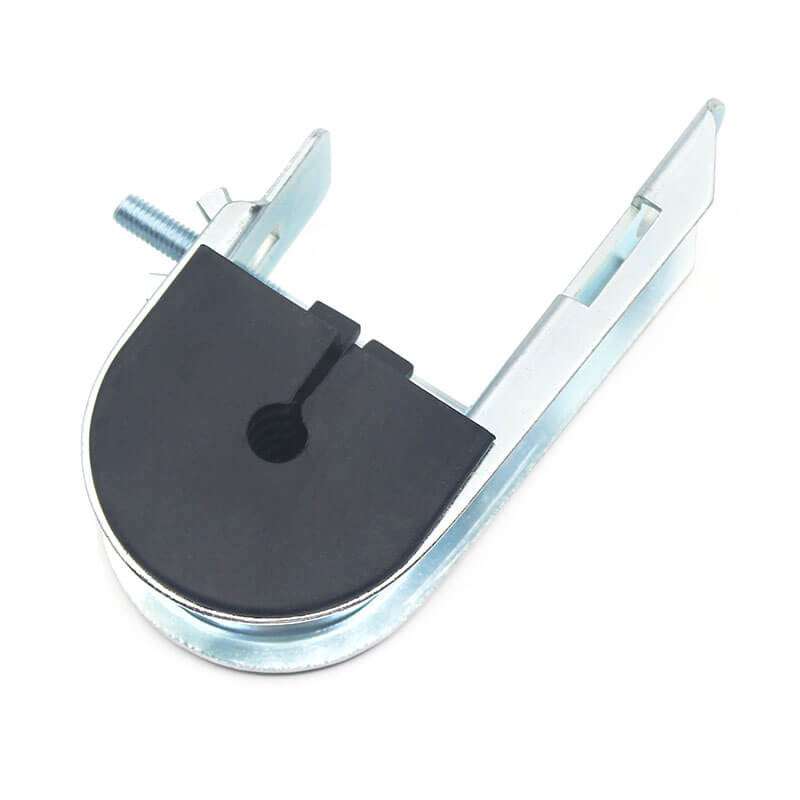

Hot Dip Galvanized Steel Tension Clamp For Figure 8 Cables J-hook

Basic Information

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-1095-3

Minimum Order Quantity:	500pieces
Packaging Details:	Normal Package
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000 PCS Per 7 Days

Get Best Price Contact Now

Detail Information

Material:	Hot Dip Galvanised Steel	Breaking Load:	5000N
Weight:	0.8 Kg	Packing:	20 Pcs/carton

Product Description

Hot Dip Galvanized Steel Tension Clamp For Figure 8 Cables J-hook

The heavy-duty suspension clamp is a versatile, and reliable solution for securing and suspending ADSS cable up to 100 meters. The versatility of the clamp allows the installer to either fix the clamp to the pole using a through bolt or band.

Specification:

Part Number	Cable diameter(mm)	Break Load(KN)
DW-1095-1	5-8	4
DW-1095-2	8-12	4
DW-1095-3	10-15	4
DW-1095-4	12-20	4

Application:

1. The clamp can be installed on a 14mm or 16mm hook bolt on drilled wood poles.

2. The clamp can be installed on wood poles, round concrete poles and polygonal metallic poles using one or two 20mm pole bands and two buckles.

3. The clamp can be secured with a 14mm or 16mm bolt on drilled wood poles.

Hot Dip Galvanized Steel Tension Clamp For Figure 8 Cables J-hook 0

Our Package:

Production Flow:
