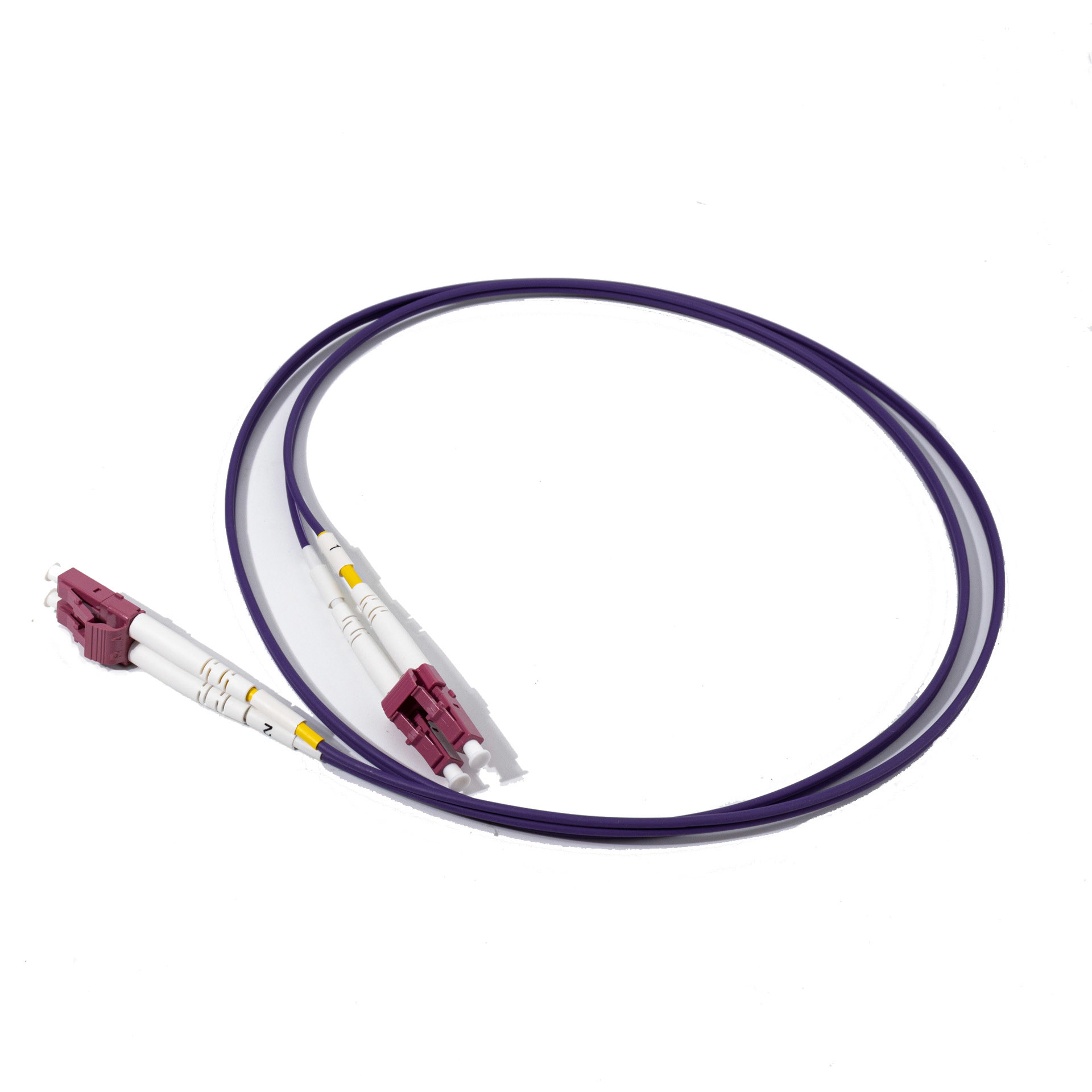

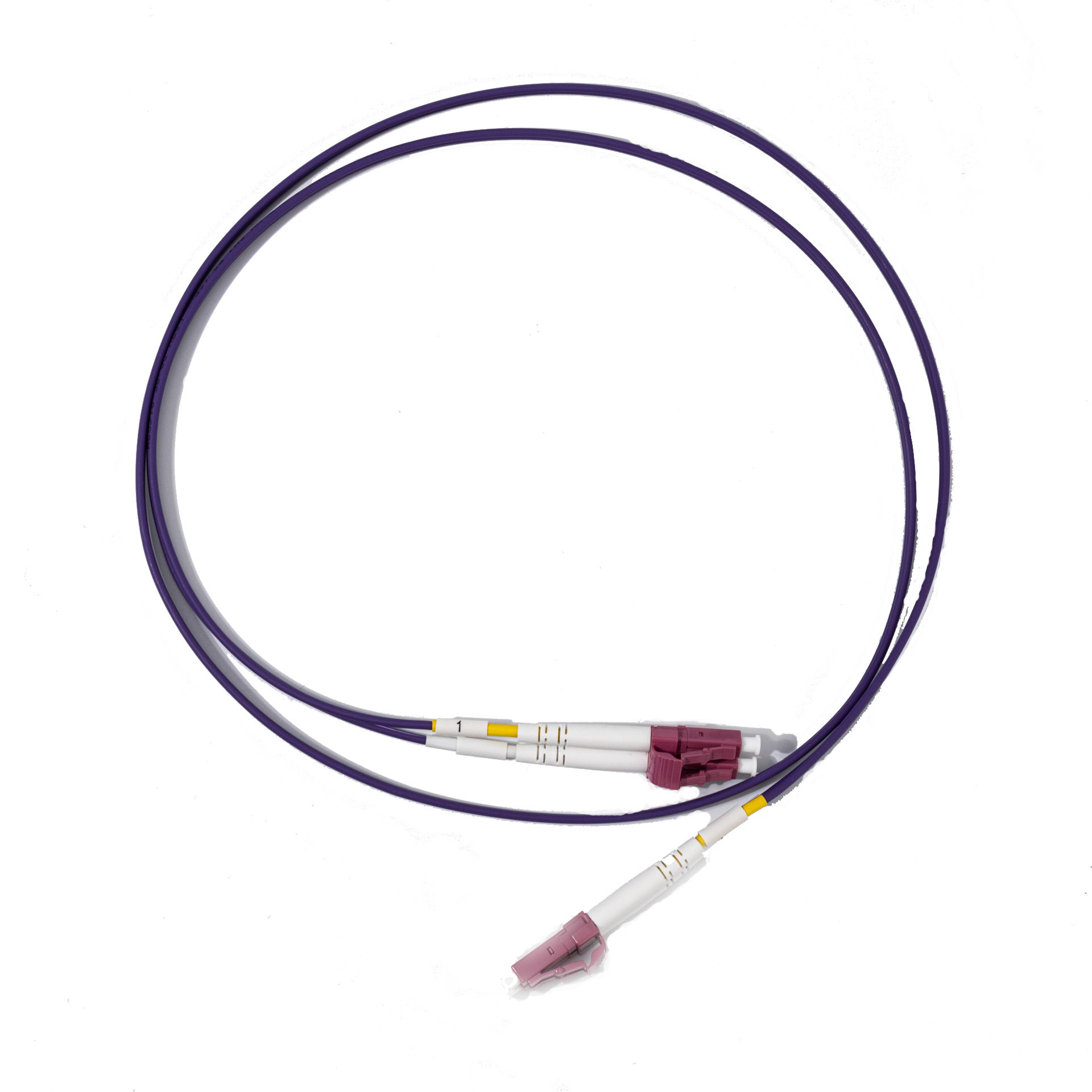

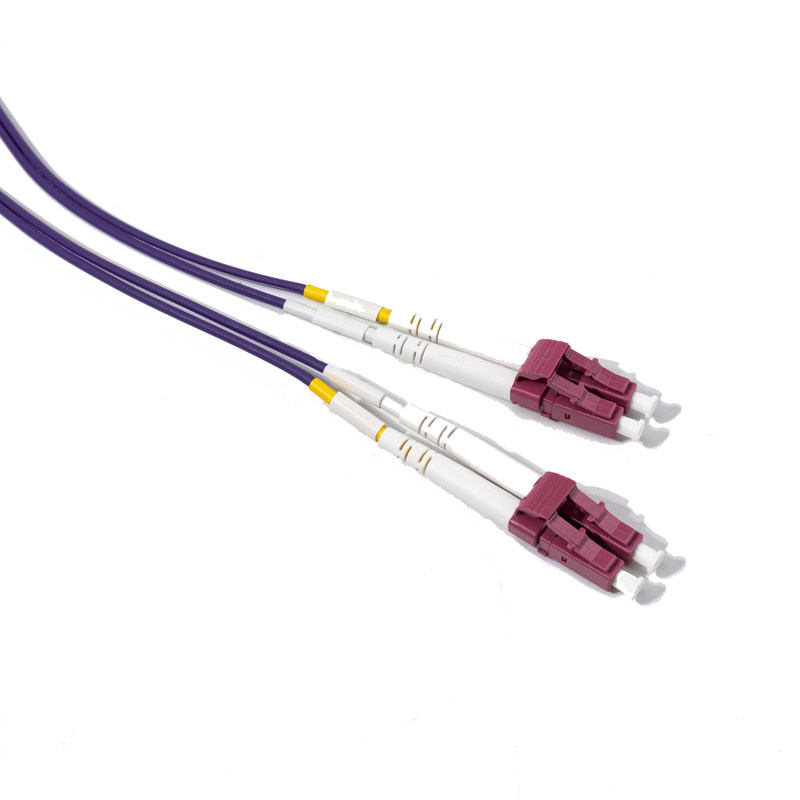

Purple LC UPC To LC UPC Duplex Patch Cord Optical Fiber MM, OM4, 3.0mm

Basic Information

Place of Origin:	China
Brand Name:	DOWELL
Certification:	CE

Minimum Order Quantity:	1000 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS Per 7 Days

Get Best Price Contact Now

Detail Information

Insertion Loss:	<0.3dB	Return Loss:	≥50dB
Connection Times:	>1000	Mode Type:	SM/MM
Operating Temperature:	-40 C- +75 ℃	Storage Temperature:	－40～＋85 ℃

Product Description

Purple LC UPC To LC UPC Duplex Patch Cord Optical Fiber MM, OM4, 3.0mm

Fiber Optic Patchcords are components to link equipments and components in fiber optic network. There are many types according to different types of fiber optic connector including FC SV SC LC ST E2000N MTRJN MPO etc. with single mode(9/125um) and multimode (50/125 or 62.5/125). Cable jacket material can be PVC, LSZH; OFNR, OFNP etc. There are simplex, duplex, multi fibers, Ribbon fan out and bundle fiber.

Specification:

Parameter	Unit	Mode	PC	UPC	APC
Parameter	Unit	Type	PC	UPC	APC
Insertion Loss	dB	SM	<0.3	<0.3	<0.3
		MM	<0.3	<0.3
Return Loss	dB	SM	>50	>50	>60
		MM	>35	>35
Repeatability	dB	Additional loss<0.1db, return loss< 5 dB
Interchangeability	dB	Additional loss<0.1db, return loss< 5 dB
Connection Times	times	>1000
Operating Temperature	°C	-40 C- +75 C
Storage Temperature	°C	-40 C- +85 C

Features:

Using high precision ceramic ferrule

Low insertion loss and high return loss

Excellent stability and high repetition

100% Optic test (Insertion Loss & Return Loss)

Application:

Telecommunication Network

Fiber Broad Band Network

CATV system

LAN and WAN system

FTTP

Package:
