FRP KFRP Fiber Optic Cable for Outdoor FTTH Connection 2*5.0mm G652D G657A

FRP KFRP Fiber Optic Cable for Outdoor FTTH Connection 2*5.0mm G652D G657A
FRP KFRP Fiber Optic Cable for Outdoor FTTH Connection 2*5.0mm G652D G657A FRP KFRP Fiber Optic Cable for Outdoor FTTH Connection 2*5.0mm G652D G657A FRP KFRP Fiber Optic Cable for Outdoor FTTH Connection 2*5.0mm G652D G657A FRP KFRP Fiber Optic Cable for Outdoor FTTH Connection 2*5.0mm G652D G657A

Large Image :  FRP KFRP Fiber Optic Cable for Outdoor FTTH Connection 2*5.0mm G652D G657A

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: GJYXFCH
Payment & Shipping Terms:
Minimum Order Quantity: 4KM
Packaging Details: Drum size: LxWxH=380x330x380 2000m/roll 36.00kg/roll
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 Roll Per 7 Days
Contact Now

FRP KFRP Fiber Optic Cable for Outdoor FTTH Connection 2*5.0mm G652D G657A

Description
Fiber Type: G652D / G657A No. Of Fiber: 1-4F
Self-Support Material: Steel Strand Wire Strength Member Material: FRP/KFRP
Color: Black, White Out Sheath: LSZH
Highlight:

ftth fiber optic cable

,

ftth fiber optic drop cable

,

outdoor fiber optic cable

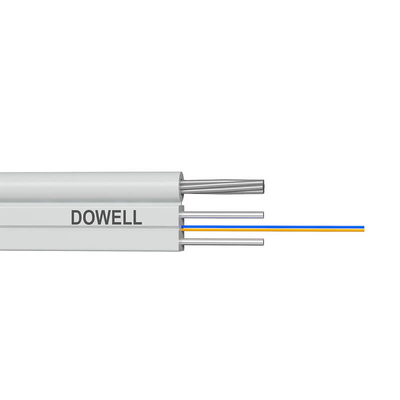

Self-supporting FRP KFRP Optic Drop Cable For FTTH Outdoor 2*5.0mm G652D G657A

FTTH Drop cables connect the main distribution cable traversing a region to end-user homes or commercial buildings. These cables bridge the fi nal stretch from the fiber backbone to the premises – often called fi ber to the home (FTTH).

Technical Parameters:

Fiber Count Cable Diameter
mm		 Cable Weight
Kg/km		 Tensile Strength
Long/Short
Term N		 Crush Resistance
Long/Short
Term N/100m		 Bending Radius
Static/Dynamic
mm
1 (2.0±0.2)×(5.0±0.2) 8.8 600/1000 1000/2200 20D/40D
2 (2.0±0.2)×(5.0±0.2) 8.8 600/1000 1000/2200 20D/40D
4 (2.0±0.2)×(5.0±0.2) 8.8 600/1000 1000/2200 20D/40D
6 (2.0±0.2)×(5.0±0.2) 9.2 600/1000 1000/2200 20D/40D

Optical Characteristics:

    G.652 G.657 50/125um 62.5/125um
Attenuation
(+20 )		 @850nm     ≤3.5 dB/km ≤3.5 dB/km
@1300nm     ≤1.5 dB/km ≤1.5 dB/km
@1310nm ≤0.35 dB/km ≤0.25 dB/km
@1550nm ≤0.30 dB/km ≤0.22 dB/km
Bandwidth @850nm     ≥500 Mhz.km ≥200 Mhz.km
Class A 850nm @1300nm     ≥1000 Mhz.km ≥500 Mhz.km
Numerical aperture     0.200±0.015NA 0.275±0.015NA
Cable Cutoff Wavelength ≤1260nm ≤1480nm

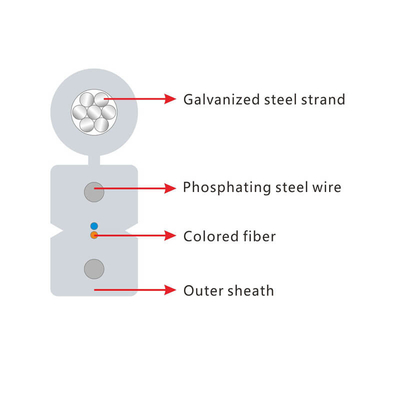

Cable Parameters:

No. of  Fiber 1-4F
Gross weight 18.0kg/km
SM Fiber Fiber Type G652D/ G657A MFD 8.8 ~ 10.5um
Cladding diameter 125±0.7um Cladding non-circularity ≤1.0%
Coating diameter 242±7um Fiber color standard spectrum
Strength member Material FRP/KFRP Color white
Diameter 0.5mm Qty 2
Self-Support Material Steel strand wire
Diameter 0.4×7-1.2
Out sheath Material LSZH Color Black
Diameter (2.0±0.2) × (5.0±0.2) Thickness ≧0.5mm
Characteristics:
1.1 Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
1.2 Two parallel steel strength members ensure good performance of crush resistance to protect the fiber;
1.3 Single steel wire as the additional strength member ensures good performance of tensile strength;
1.4 Simple structure, light weight and high practicability;
1.5 Novel flute design, easily strip and splice, simplify the installation and maintenance;
1.6 Low smoke, zero halogen and flame retardant sheath.

Application:

2.1 It ideal for high-speed internet access, interactive digital services, voice services, LANs, security systems, industrial automation systems, and telecommunications networks.

Package:

FRP KFRP Fiber Optic Cable for Outdoor FTTH Connection 2*5.0mm G652D G657A 0

FRP KFRP Fiber Optic Cable for Outdoor FTTH Connection 2*5.0mm G652D G657A 1

Production Flow:

FRP KFRP Fiber Optic Cable for Outdoor FTTH Connection 2*5.0mm G652D G657A 2
