Product Details:
|
| Shell Material: | PP+GF | Color: | Black |
|---|---|---|---|
| Protectionlevel: | IP68 | Fusion Capacity: | 96 Cores |

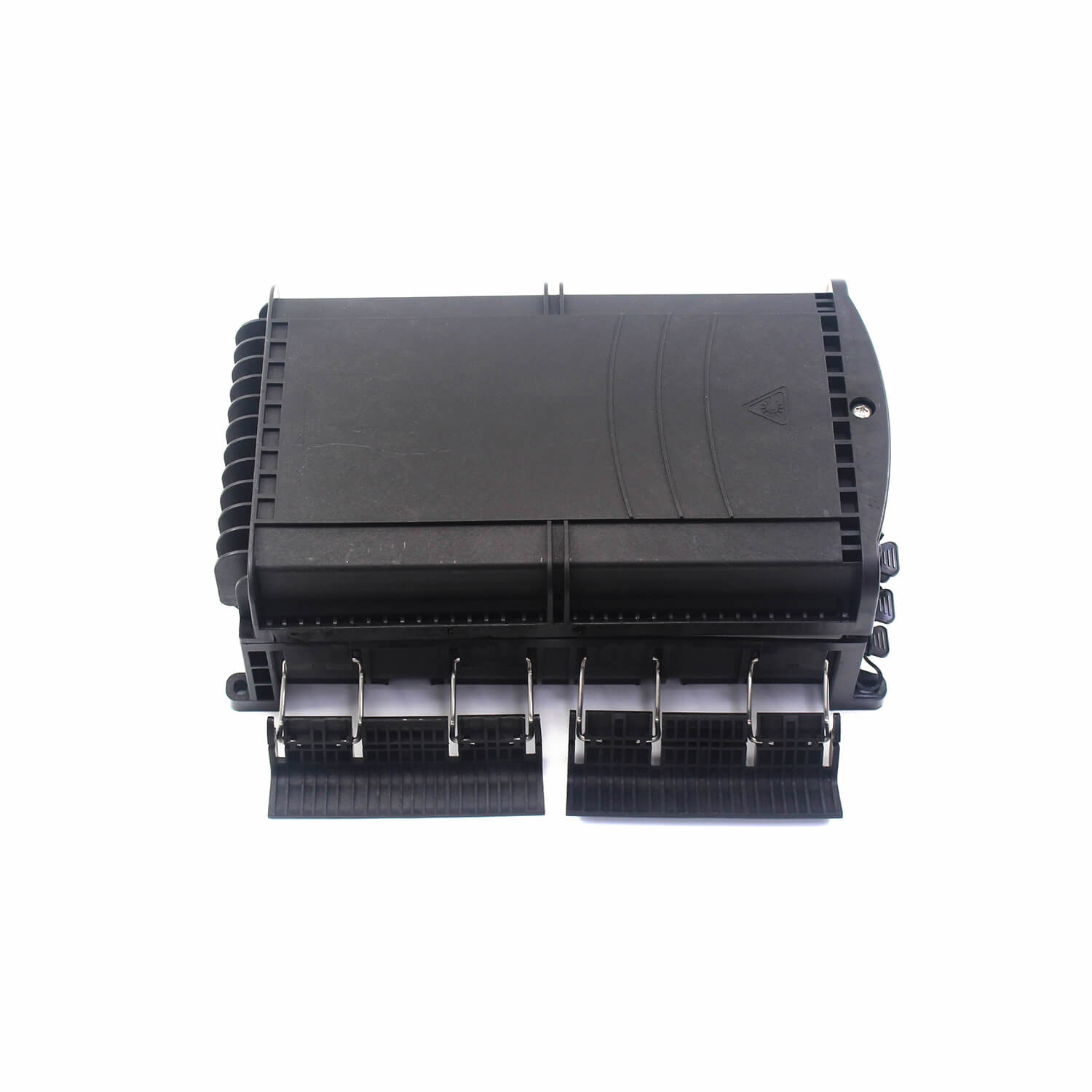

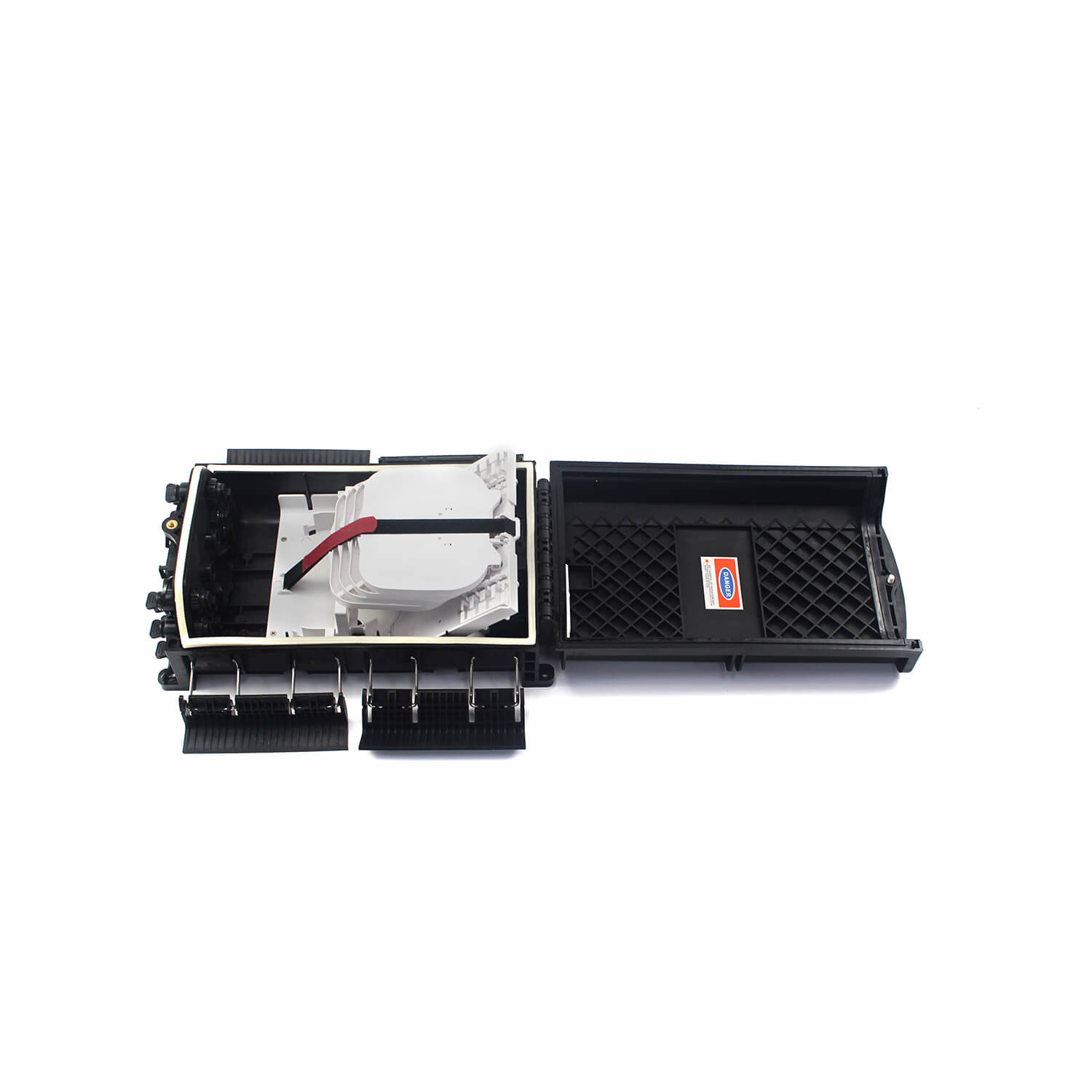

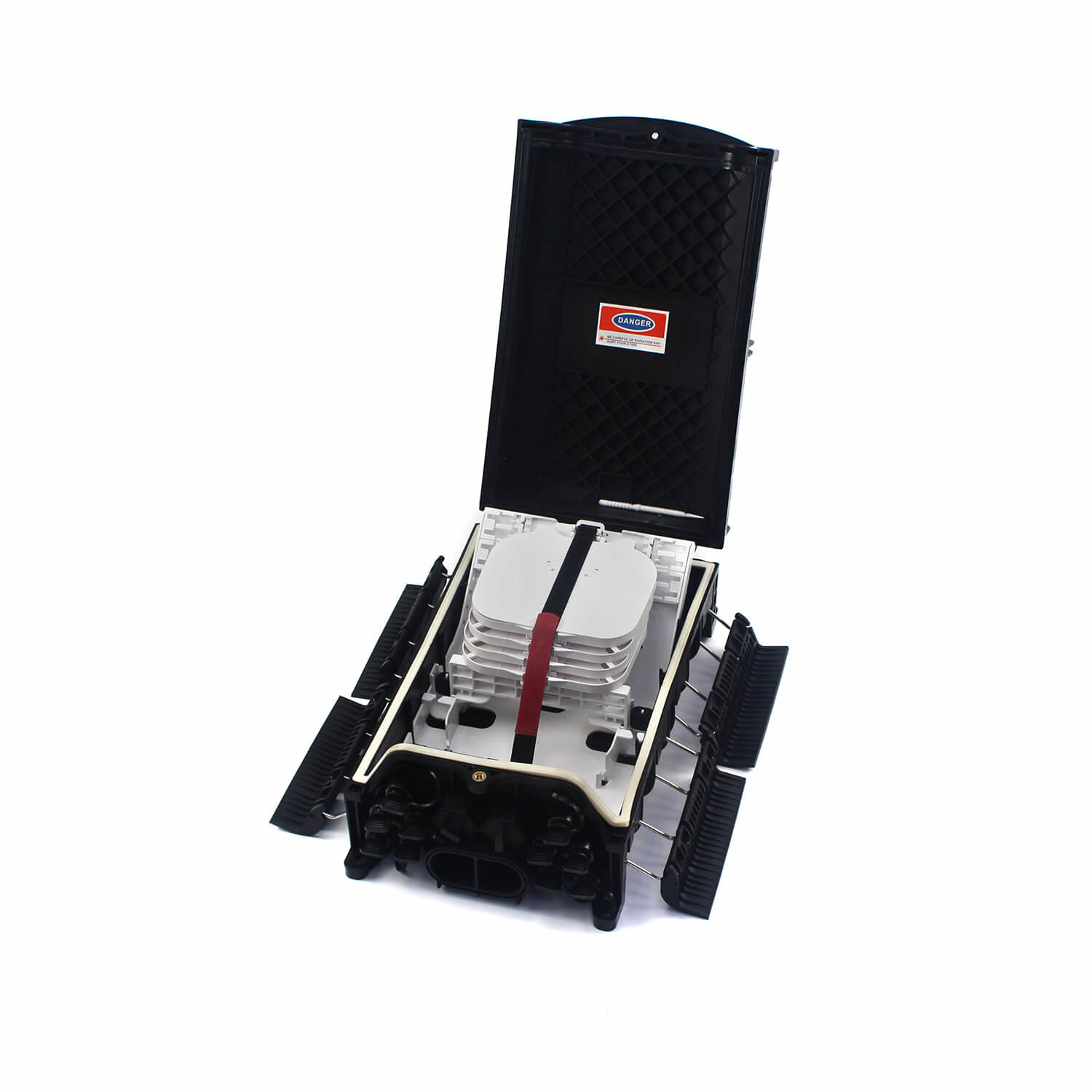

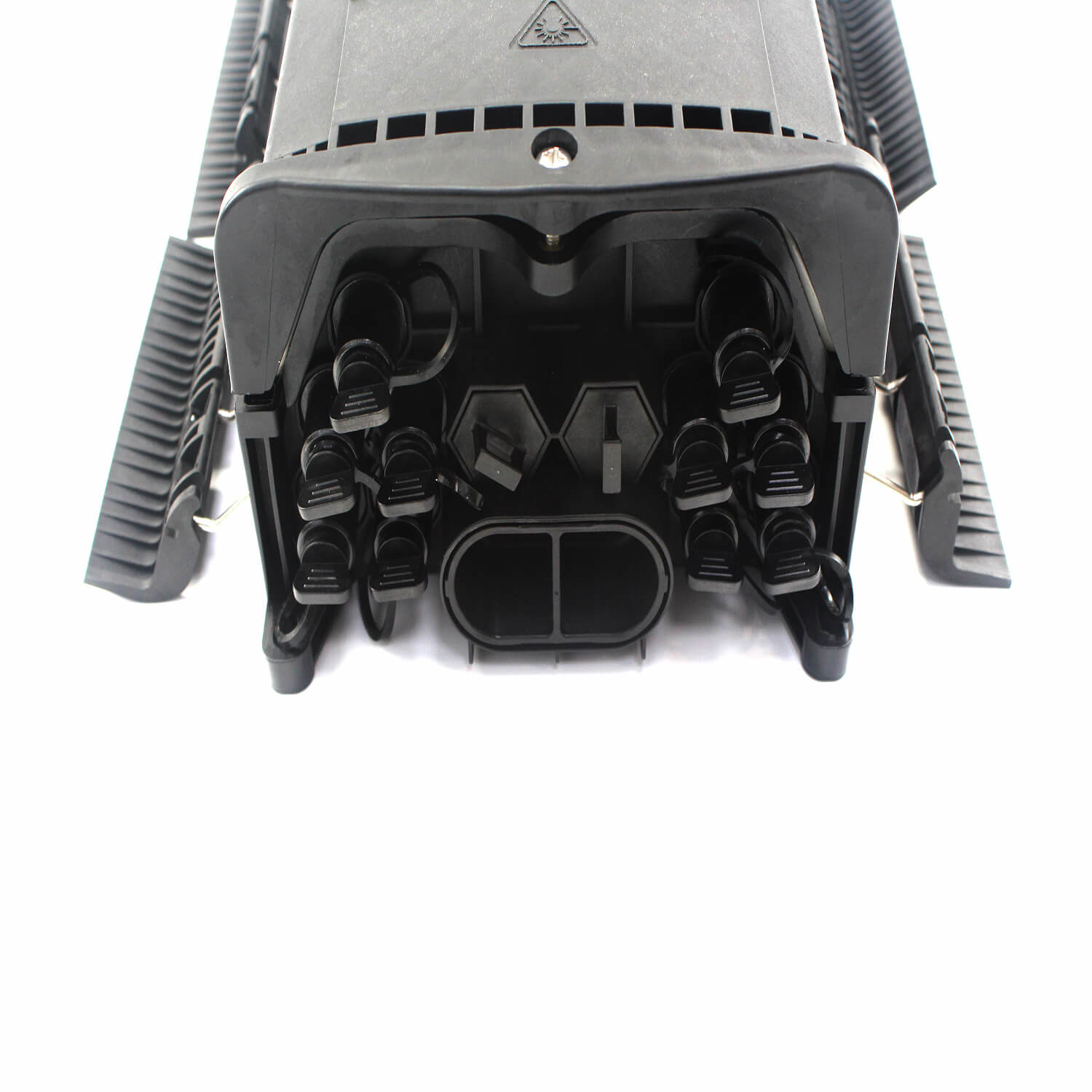

Mechanically Sealed Pre Connected Horizontal Connector Cable Box 96 Cores Black IP68
This is a mechanically sealed pre connected horizontal connector box used for ORP (Optical Ring Passive) network access points in underground mines. Single ended design, used as a hub box node in an unequal ratio fullypre connected solution, converting traditional optical cables into single core pre connected SC/APC output ports.
specifications
| Shell material | PP+GF |
| color | Black |
| Protectionlevel | IP68 |
| Sealingmethod | Mechanical |
| adaptertype | SC/APC outdoor adapter |
| Wiring capacity (in cores) | 16 |
| Fusion capacity (in cores) | 96 |
| Maximum number of fusion discs | 8 |
| Single disc fusion capacity (unit: core) | 12 |
| Tail fibertype | 16SC/APC tail fibers, length 1m, sheath made of LSZH material, and optical fiber made of G.657A1 fiber |
| Installation method | Wall hanging |
