Name: Long Span Steel ADSS Anchor Clamp with 100m Span Length for Double Suspension
Brand: DOWELL INDUSTRY GROUP LIMITED
SKU: DW-SCS-D
Price: 0.50 USD
Availability: InStock

Detail Information

RTS:	Greater Than 20kN	Span Length:	100m
Material:	Steel	Color:	Black And Silver
Packaging:	Pallet Or Wooden Case	Standard:	Nonstandard
Highlight:	Long Span ADSS Anchor Clamp , Long Span adss suspension unit , Double Suspension ADSS Anchor Clamp

Product Description

Long Span Double ADSS Anchor Clamp Reliable Double Suspension

Product Overview

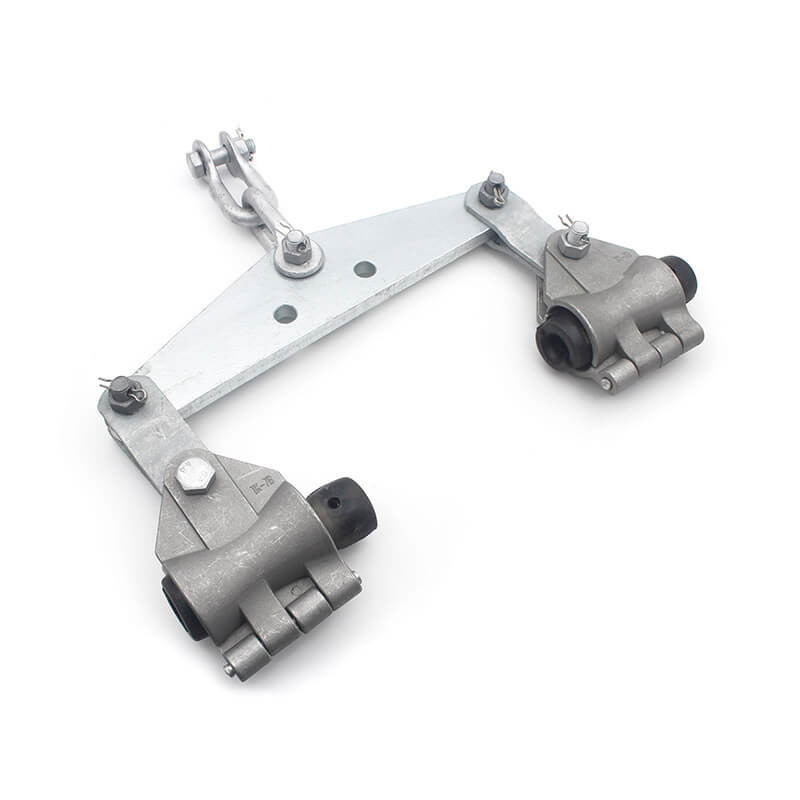

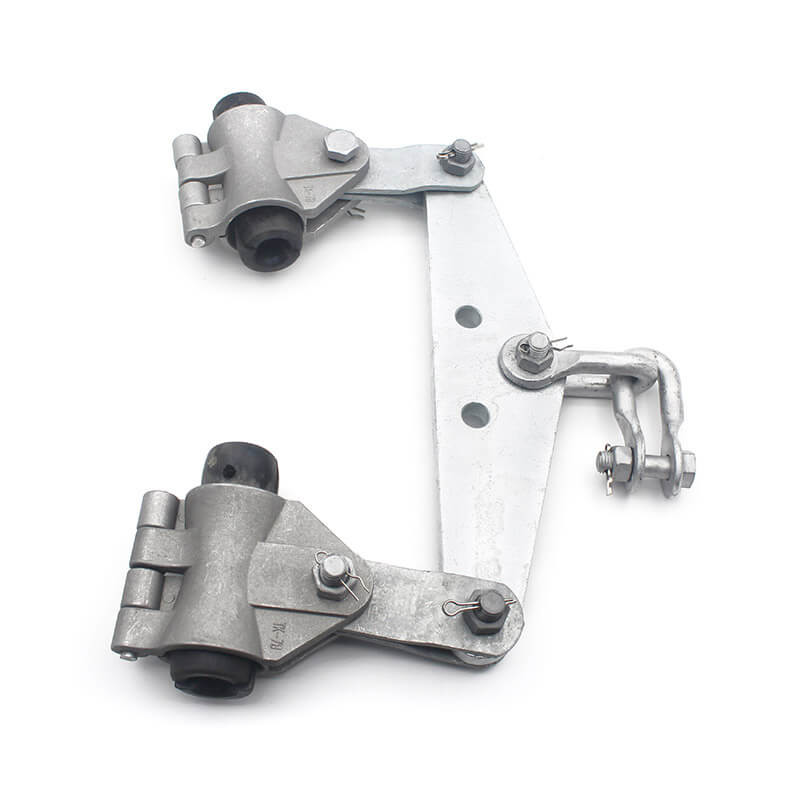

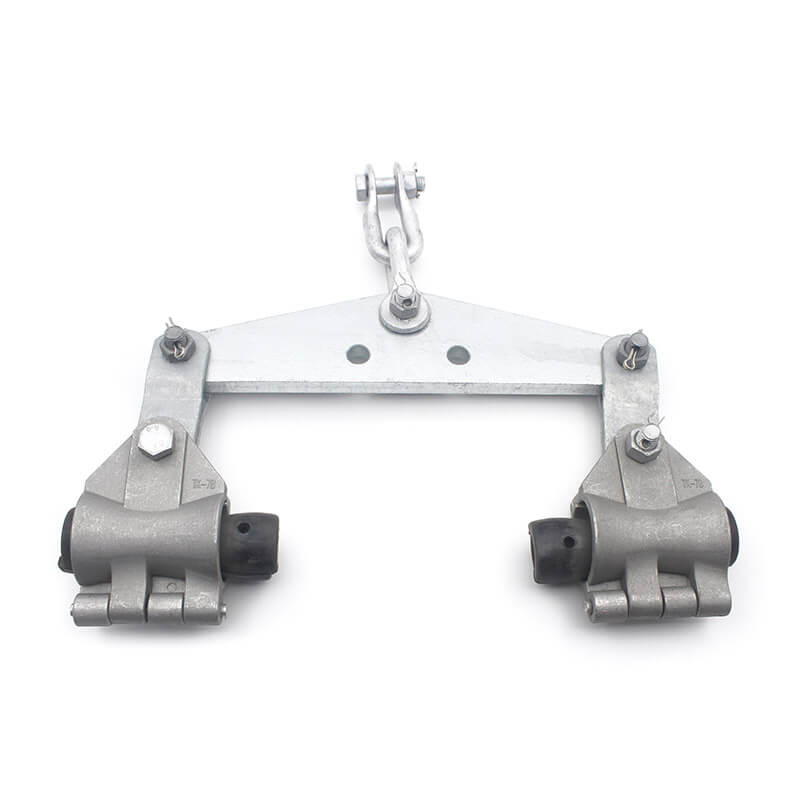

Double-suspension cable clamps combine all the properties of single-suspension cable clamps with two sets of suspensions to enhance mechanical strength and increase the radius of curvature. This ensures safe and reliable operation of fiber-optic cables under demanding conditions including large corners, high drops, and large spans. Designed for challenging installations across rivers, valleys, and other special locations with elevation angles of 30°-60° on towers, these clamps offer breaking strength of 70KN and 100KN.

Specifications

Type	Available Cable Diameter (mm)	Available Span (m)
LA940/500	8.8-9.4	100-500
LA1010/500	9.4-10.1	100-500
LA1080/500	10.2-10.8	100-500
LA1150/500	10.9-11.5	100-500
LA1220/500	11.6-12.2	100-500
LA1290/500	12.3-12.9	100-500
LA1360/500	13.0-13.6	100-500
LA1430/500	13.7-14.3	100-500
LA1500/500	14.4-15.0	100-500
LA1220/1000	11.6-12.2	600-1000
LA1290/1000	12.3-12.9	600-1000
LA1360/1000	13.0-13.6	600-1000
LA1430/1000	13.7-14.3	600-1000
LA1500/1000	14.4-15.0	600-1000
LA1570/1000	15.1-15.7	600-1000
LA1640/1000	15.8-16.4	600-1000
LA1710/1000	16.5-17.1	600-1000
LA1780/1000	17.2-17.8	600-1000
LA1850/1000	17.9-18.5	600-1000

Product Details

Applications

Primarily used for long span installations across rivers and valleys with significant elevation changes
Designed for use on poles or towers with turning angles from 30° to 60°
Standard yoke plate span length of 400mm
Customizable configurations available to meet specific customer requirements

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-SCS-D

Minimum Order Quantity:	1000 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	10000 PCS Per 7 Days
