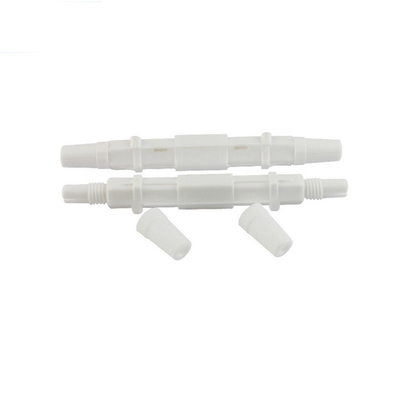

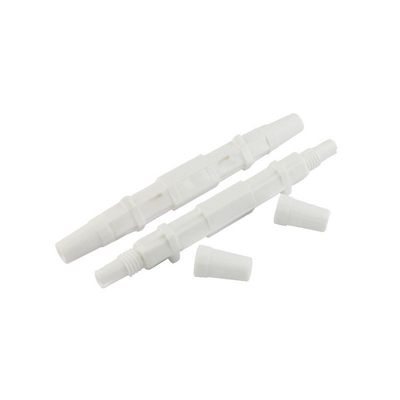

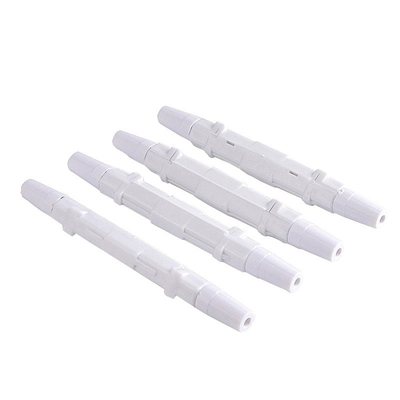

FTTH Outdoor 1 Core Drop Cable Splicing Tube Protection Box

FTTH Outdoor 1 Core Drop Cable Splicing Tube Protection Box
FTTH Outdoor 1 Core Drop Cable Splicing Tube Protection Box FTTH Outdoor 1 Core Drop Cable Splicing Tube Protection Box FTTH Outdoor 1 Core Drop Cable Splicing Tube Protection Box

Large Image :  FTTH Outdoor 1 Core Drop Cable Splicing Tube Protection Box

Product Details:
Place of Origin: China,Zhejiang
Brand Name: DOWELL
Model Number: DW-1202A
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5000PCS Per 7 Days
Contact Now

FTTH Outdoor 1 Core Drop Cable Splicing Tube Protection Box

Description
Material: PP Color: White
Application: 3.0*2.0mm Drop Cable, 0.9mm Cable, 0.25mm Cable IP Grade: IP65
Length: 103mm Weight: 0.005kg
Highlight:

ftth adsl vdsl tester

,

ftth network cable crimping tools

FTTH 1 Core Drop Cable Splicing Tube Protection Box

Drop Cable Protect box is used for drop cable connecting, splice and protection. It can hold 1piece SC Simplex adapter, 2pcs SC fast connectors, suitable for FTTH. It could be indoor or outdoor use, with good waterproof capacity. It is compact size, good appearance. Provides extremely economical and optimal protection for exposed single fiber connectors.

Specification:

Application 3.0x2.0mm Drop Cable or Indoor Cable
Fiber Cladding Diameter 125um(G652D&G657A)
Fiber Diameter 250um&900um
Fiber Type Single Mode(SM) & Multi Mode(MM)
Tensile Strength > 50N
Repeat Uses Circles 5 times
Insertion Loss <0.2dB
Return Loss > 50dB(UPC), > 60dB(APC)
Bending Radius(mm) > 15
Operation Temperature -40~60(°C)
Storage Temperature -40~85(°C)

Features:

1.1 ​Both Made of high-quality PP Plastic, silicone ring seal between the cover and bottom.

1.2 Small size, easy installation.

1.3 Indoor outdoor used.

1.4 Waterproof IP65, dust proof.

Application:

2.1 Suitable for indoor or outdoor use
2.2 Used for protect drop cable
2.3 Used in FTTH, Telecommunications, CATV ect.

How To Use:

FTTH Outdoor 1 Core Drop Cable Splicing Tube Protection Box 0

FTTH Outdoor 1 Core Drop Cable Splicing Tube Protection Box 1
